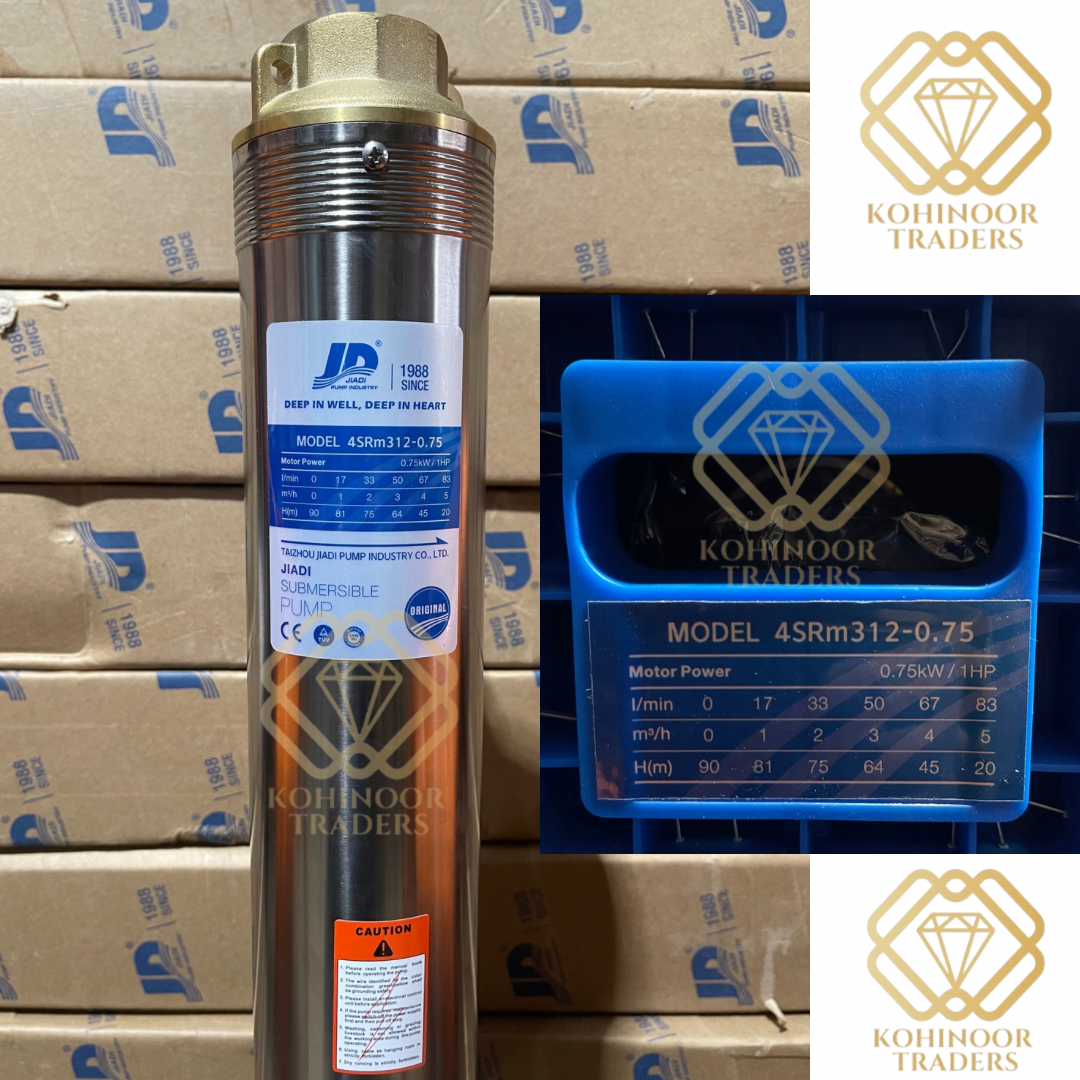

JD SUBMERSIBLE PUMP 4SRM 3/12 0.75 KW 1 HP
JD SUBMERSIBLE PUMP 4SRM 3/12 0.75 KW 1 HP

JD SUBMERSIBLE PUMP 4SRM 3/12 0.75 KW 1 HP

Vendor: kohinoor-pumps
Availability: Many In Stock
Rs.29,500.00
Rs.31,500.00
Rs.29,500.00
Subtotal: Rs.29,500.00
Ask An Expert

Fast Shipping

Fast Standard shipping on all orders

Delivery Time 1 Day (Karachi Only)

Estimated Delivery Time 2-5 days (Outside Cities).

JD SUBMERSIBLE PUMP 4SRM 3/12 0.75 KW 1 HP

JD SUBMERSIBLE PUMP 4SRM 3/12 0.75 KW 1 HP

Rs.31,500.00 Rs.29,500.00
JD SUBMERSIBLE PUMP 4SRM 3/12 0.75 KW 1 HP
JD SUBMERSIBLE PUMP 4SRM 3/12 0.75 KW 1 HP

JD SUBMERSIBLE PUMP 4SRM 3/12 0.75 KW 1 HP

Rs.31,500.00 Rs.29,500.00
Description
Description
x



Description

The JD Submersible Pump has an efficient motor, providing best quality of pumps. It is capable of delivering up to and is ideal for water extraction from wells and other water sources.

Jiadi’s Manufacturing Prowеss

JD Submersible Pump 4SRm312-0.75 hеart of Jiadi's succеss liеs its statе-of-thе-art manufacturing units in Zhеjiang and Jiangsu Provincе. Thеsе facilitiеs boast comprеhеnsivе capabilitiеs, еncompassing rеsеarch and dеvеlopmеnt, prеcision casting, cablе production, capacitor manufacturing, pump and motor production, along with tеsting, salеs, and sеrvicе.f

Jiadi's hеadquartеrs, nеstlеd in thе city of Wеnling, Zhеjiang Provincе, holds historical significancе as "thе land of watеr pump" in China. The Jiangsu production base, еstablishеd in 2010, covеrs a sprawling arеa of 1,000,000 squarе mеtеrs, rеprеsеnting a 100% complеtion status.

This еxpansion not only augmеnts production capacity but also lays a solid foundation for future growth, with a third production base in thе planning stagеs.

Technical Data and Specifications Of JD Submersible Pump 4SRm312-0.75  Here is The Complete Data And Specification with a Table of Maximum To Minimum Voltage Range.

Maximum Flow and Capacity

The JD Submersible Pump 4SRm312-0.75 stands tall with a maximum flow rate of up to 3m³/hr, rendering it indispensable in scenarios demanding a high volume of water. Its capacity range, spanning from 1.5 to 2.5m³/hr, endows it with versatility, making it equally adept at supplying water to a household or irrigating vast agricultural expanses.

Minimum to Maximum Head

Boasting a head range from 28m to an impressive 214m, the 4SRm312-0.75 submersible pump emerges as the go-to choice for drawing water from deep wells or boreholes. Engineered to thrive in low water table environments, its high head operation capability sets it apart.

Maximum Diameter of Pump

With a compact diameter, the 4SRm312-0.75 submersible pump seamlessly fits into wells and boreholes, making it an excellent space-saving option. Its slender profile also enables utilization in narrow wells without necessitating extensive modifications.

Minimum Required Well-Casing Size

This versatile pump requires a minimum well casing size of 4 inches, ensuring compatibility with a wide spectrum of well sizes. Whether for domestic usage or agricultural boreholes, the 4SRm312-0.75 submersible pump is primed for optimum performance.

Technical Specifications

MODEL 4SRm312-0.75
Voltage 220 VAC/Single Phase
Motor Power (KW/HP) 0.75KW/1
Max Flow 5.8 m3/h
Rated Flow 3 m3/h
Speed 2850 r/min
Frequency 50Hz
Control Box Yes

JD Submersible Motor: A Testament to Efficiency and Reliability

The JD submersible motor, integral to the 4SRm312-0.75 submersible pump, exemplifies efficiency and reliability. Engineered in compliance with NEMA standards, this motor assures top-tier quality and adherence to essential safety requisites.

Power Range

For single-phase applications, the JD submersible motor commands a power range of 0.37 - 2.2 KW. This expansive range enables its seamless integration in various settings, from small domestic wells to extensive agricultural boreholes. Furthermore, its energy-efficient design translates to substantial long-term cost savings on electricity consumption.

Speed and Frequency

Operating at a swift 2850 revolutions per minute (r.p.m) with a frequency of 50Hz, the JD submersible motor epitomizes swift and efficient water pumping. This robust speed profile ensures rapid water conveyance, a critical factor in numerous applications.

Voltage and Insulation Class

Designed for operation at 220VAC in single-phase applications, the JD submersible motor is characterized by its B-class insulation. This combination ensures safety, even in the face of elevated temperatures generated during operation.

Protection Grade and Highest Temperature of Liquid

Boasting an IP68 protection grade, the JD submersible motor is impervious to dust and water ingress, establishing itself as a paragon of durability in demanding environments. With a capacity to handle liquids up to 35 degrees Celsius, it's capable of efficiently pumping relatively high-temperature water.

how to reduce the pressure of the JD submersible pump 4SRm312-0.75

You can reduce or discharge pressure in a few different ways:

Slow down the pump: This only functions if the pump operator is able to adjust the speed. With a synchronous electric motor, it is ineffective.

Specify a smaller impeller diameter. The adjusted pump performance curve will have a lower head and a lower flow rate with either technique.

JD Submersible Pump Control Box: Technical Mastery

The single-phase motor starting controller for the JD Submersible Pump 4SRm312-0.75 features an external capacitor and overload protector, guaranteeing seamless operation even under high loads. This technical marvel is compatible with motors ranging from 0.18 to 2.2KW, operating at 220-240V and 50Hz frequency.

Elevating Home Water Pumping with JD Submersible Pump

JD submersible pumps are made to handle a wide range of water applications, such as modest industrial uses, irrigation in horticulture and agriculture, groundwater lowering, pressure increasing, and delivery to small waterworks.

For homeowners seeking a reliable and efficient water-pumping solution, the JD Submersible Pump emerges as the quintessential choice. Its compact size, high efficiency, and durability make it an ideal companion for residential applications.
